.: Data Acquisition Modules

Isolated Digital Modules

S3301: Digital input output modules, 8 dry/wet contact inputs,6 open-collector outputs S3302 : Digital input modules,16 isolated dry/wet contact inputs
1. Isolated digital inputs can be configured as 32-bit counter input
2. Static ,lightning protection for each input
3. The input channel number is configurable, can be set up from 1 channel through 8 channels, improve frequency for small count input
4. Isolated open-collector output can drive power relay directly
5. Surge-protected and isolated Rs485 ensure reliability
6. Standard ModBus protocol allows for up to 254 unique devices on one RS485 network
7. You can tell us your requirement. we will update our firmware even after you received the modules ,you can update your modules via ISP through RS485 BUS
1. Isolated digital inputs can be configured as 32-bit counter input
2. 32-bit counter be stored into FLASH when power off
3. Can measue frequency from 0 to 200Hz,the resolution is 0.1Hz
4. Static and lightning protection for each input
5. Accept dry contact,open-collector,TTL and wet contact input
6. The input channel number is configurable, can be set up from 1 channel through 16 channels, improve frequency for small count input
7. Surge-protected and isolated Rs485 ensure reliabilityStandard ModBus protocol allows for up to 254 unique devices on one RS485 network
8. You can tell us your requirement. we will update our firmware even after you received the modules ,you can update your modules via ISP through RS485 BUS.
Price: $55
Price: $55
Technical_S3301.zip Technical_S3302.zip
S3301W: Digital input output modules,one Wiegand reader,6 dry/wet contact inputs,6 open-collector outputs
S3305 : 5 Channels Power Relay Output,normal open S3306:16 isolated 0 to 36VDCdigital inputs
  1. The max current can up to 3A@220VAC, 5 channels in very low price
  2. Surge-protected and isolated Rs485 ensure reliability
  3. Standard ModBus protocol allows for up to 254 unique devices on one RS485 network



1. Isolated digital inputs can be configured as counter input, total 32 bits
2. 32-bit counter be stored into FLASH when power off
3. Can measue frequency from 0 to 200Hz,the resolution is 0.1Hz
4. Static and lightning protection for each input
5. The input channel number is configurable, can be set up from 1 channel through 16 channels, improve frequency for small count input
6. Surge-protected and isolated Rs485 ensure reliability
7. Standard ModBus protocol allows for up to 254 unique devices on one RS485 network
8. You can tell us your requirement. we will update our firmware even after you received the modules ,you can update your modules via ISP through RS485 BUS.
Price: $55
Price: $55
Technical_S3305.zip Technical_S3306.zip
S3308 : 3 Channels Power Relay Output,FORM C type outpt 69USD

S3303 :16 isolated open-collector outputs S3303E :16 isolated open-collector outputs
  1. Isolated open-collector output can drive power relay directly
  2. Surge-protected and isolated Rs485 ensure reliability
  3. Standard ModBus protocol allows for up to 254 unique devices on one RS485 network
  4. The maximum output current can up to 40mA
  1. Isolated open-collector output can drive power relay directly
  2. Surge-protected and isolated Rs485 ensure reliability
  3. Standard ModBus protocol allows for up to 254 unique devices on one RS485 network
  4. The output current can up to 200mA
Price: $55
Price: $58
Technical_S3303.zip Technical_S3303E.zip

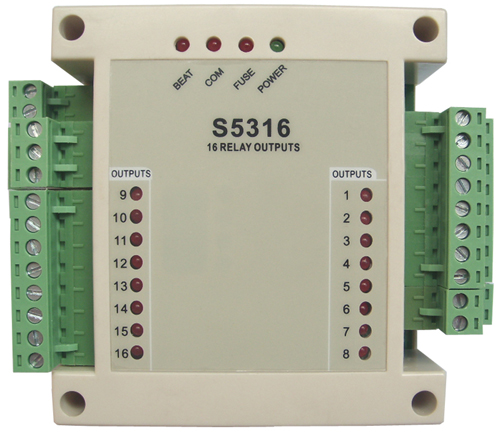

S5100 : 8 channels 0- 5V,0 -10V,4 - 20mA analog inputs,10 relay outputs ,12bits ADC S5316 : 16 channels relay normal open output, relay is 1A@30VDC, 0.5V@125VAC
  1. Surge-protected analog inputs with 12-bit resolution and 100k sample speed
  2. Input can be any combination of 0-10V,0-5V,4-20mA,NTC 10K thermistor and dry contact
  3. 10 channel normal open relay outputs, each output channel can be set AUTO/OFF/HAND by a 3-states switch
  4. Surge-protected and isolated Rs485 ensure reliability
  5. The channel number is configurable, can be set up from one channel through eight channels, improve sample rate for small count analog input
  6. Standard ModBus protocol allows for up to 254 unique devices on one RS485 network
  7. White and black encloure available
  1. Surge-protected and isolated Rs485 ensure reliability
  2. Standard ModBus protocol allows for up to 254 unique devices on one RS485 network
  3. A lot of spare FLASH can be used to store user’s parameters
  4. Isolated RS485,non-isolated RS485,RS232 for optional
  5. Can update your firmware via ISP through RS485 network
Price : $115
Price : $80
Technical_S5100.zip Technical_S5316.zip
Modbus_Protocol.pdf Modbus_Protocol.pdf

Send us email if you need a product with diffrent digital input&output,MODBUS ,RTU modules.We will deliver sample in one month.
